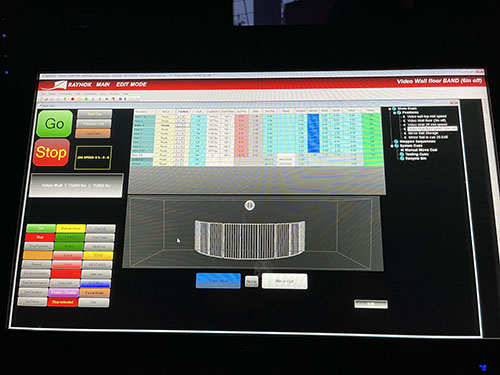

Niscon cheat sheet!

Here's a few infos and datas i've been using that I found works best for my systems! Remember that all these are subject to factors like dynamic loads, balance, and many other things. Always consult a qualified rigger before making decisions on movements.



250Kg
PPU 570.444458
Max Speed 1.7
Max Acceleration 1.25
Max Deceleration 1.25
Max Jog Speed 1.7
Default profile parameter Speed 1
Default Acceleration 1
Default Deceleration 1
Minimum recommended speed in a CUE 0.2



500Kg
PPU 45.839417
Max Speed 1.4
Max Acceleration 1.25
Max Deceleration 1.25
Max Jog Speed 1.4
Default profile parameter Speed 1
Default Acceleration 1
Default Deceleration 1
Minimum recommended speed in a CUE 0.2



500Kg MK4 only
(Max speed varies depending on capacity used)
PPU 944.969177
Max Speed 2.5
Max Acceleration 4
Max Deceleration 4
Max Jog Speed 2.5
Default profile parameter Speed 1
Default Acceleration 1
Default Deceleration 1
Minimum recommended speed in a CUE 0.001





1000Kg
PPU 45.839417
Max Speed 0.54
Max Acceleration 1
Max Deceleration 1
Max Jog Speed 0.54
Default profile parameter Speed 0.54
Default Acceleration 1
Default Deceleration 1
Minimum recommended speed in a CUE 0.08



Trolleys
PPU 1 330.100006
PPU 2 9351.488281
Max Speed 3
Max Acceleration 2.5
Max Deceleration 2.5
Max Jog Speed 3
Default profile parameter Speed 0.5
Default Acceleration 0.25
Default Deceleration 0.25



Load Cells
Minimum reading 0
Minimum weight 0
Maximum reading 3162
Maximum weight 6500
LC_KOD -1622 (variable)
DAC Offset 2600
